ZQ40 Injection Blow Molding Machine

Adopting an authentic full European-style structure, our Injection Blow Molding Machine features superior structural stability that surpasses ordinary models. Its damping force is enhanced by 20%-30% compared to industry peers, effectively suppressing operational vibration for precise molding. Equipped with a standard servo rotation system, it boasts a streamlined structure and hassle-free operation. The exclusive pressurized clamping structure realizes a revolutionary design—where the booster cylinder is excluded from the mold opening/closing cycle—cutting energy consumption by 10%-20% and creating a high-efficiency, low-consumption production experience.

ITEM Unit ZQ40
Injection System
Screw Diameter mm 40/45
Screw L/D % 22:1
Injection weight! g 190/260
Heating power KW 7.5
Number of barrel zone   3+N
Injection stroke mm 120
Clamping System
Clamping force of injection KN 400
Opening stroke for injection mm 165
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifting height of rotary table mm 70
Mould
Max.Platen size(L x W) mm 480x340
Mold thickness mm 180

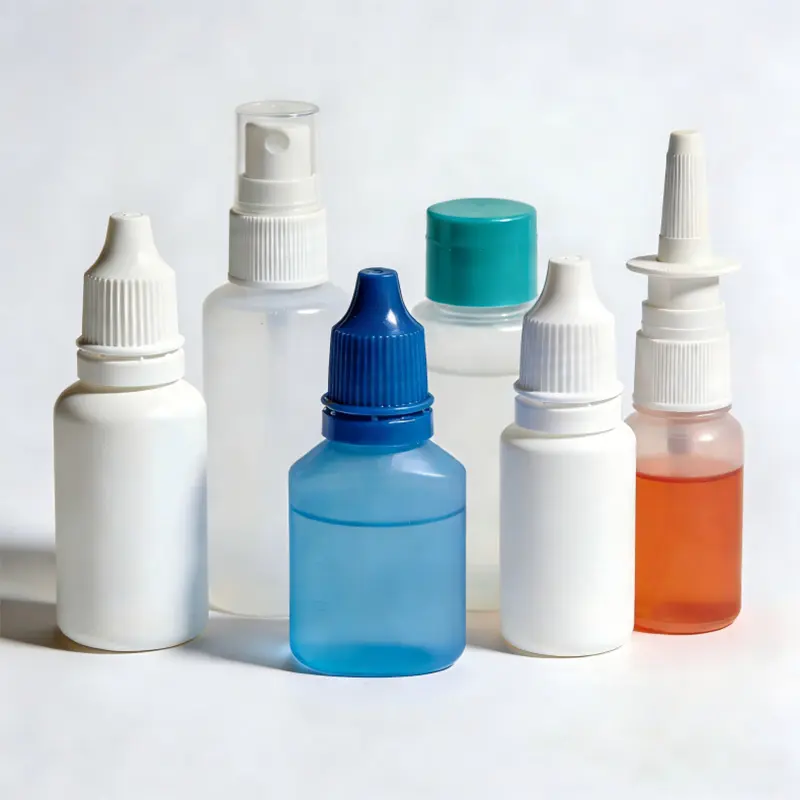

Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1500
Stripping stroke mm 220
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 3.5
Total Power KW 20
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7- 1.2
compressed air capacity M3/min 0.7
Water flow age M3/h 3.5
Cooling water pressure MPa 0.3-0.4
Dimension(L x W x H ) M 3.5x1.3x1.7
Net weight Ton 3.8

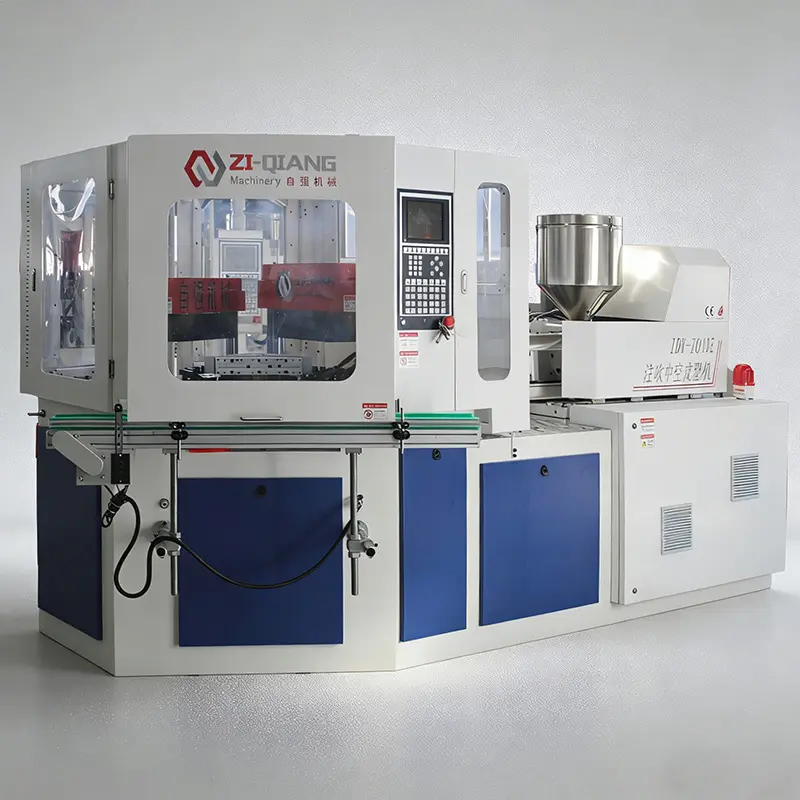

ZQ40HE  High-Speed Fully Electric Injection Blow Molding Machine

The machine adopts a full servo motor drive system, completely abandoning hydraulic oil for all movements.
Compared with traditional models, it boasts a 20% shorter cycle time—for 30ml bottles, the cycle is only 8.2 seconds, achieving a daily output of 105,000 bottles and a maximum of 115,000 bottles per day.
Energy consumption is reduced by around 30%, with only 12 kWh per hour for 30ml bottle production. It features lower noise, absolute encoders in the servo system for high repeatability and precision, and a 40-80 ton adjustable clamping force via a special clamping structure.

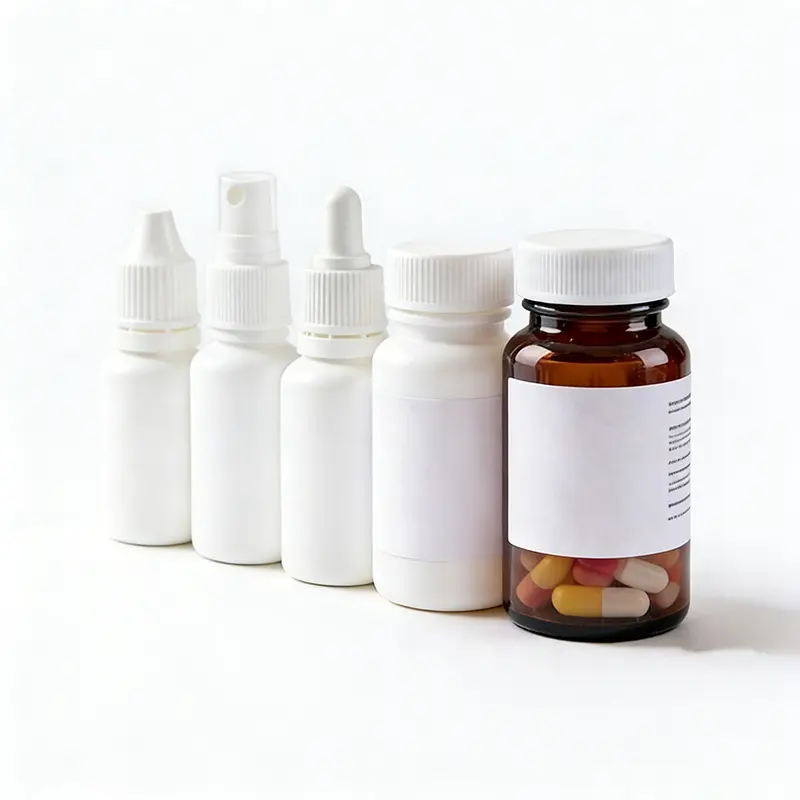

The bottom-up design keeps the mold area free of lubricating oil, meeting hygiene standards for pharmaceutical packaging and high-quality plastic bottles.
Customizable for customer needs, it uses an electric cylinder-driven injection unit for stable injection and lower maintenance costs. The conveyor rear is compatible with visual inspection systems, leak testers, labeling machines, and automatic packaging equipment for unattended full automation.
