ZQY80 Fully Automatic Extrusion Blow Molding Machine(Single Station）

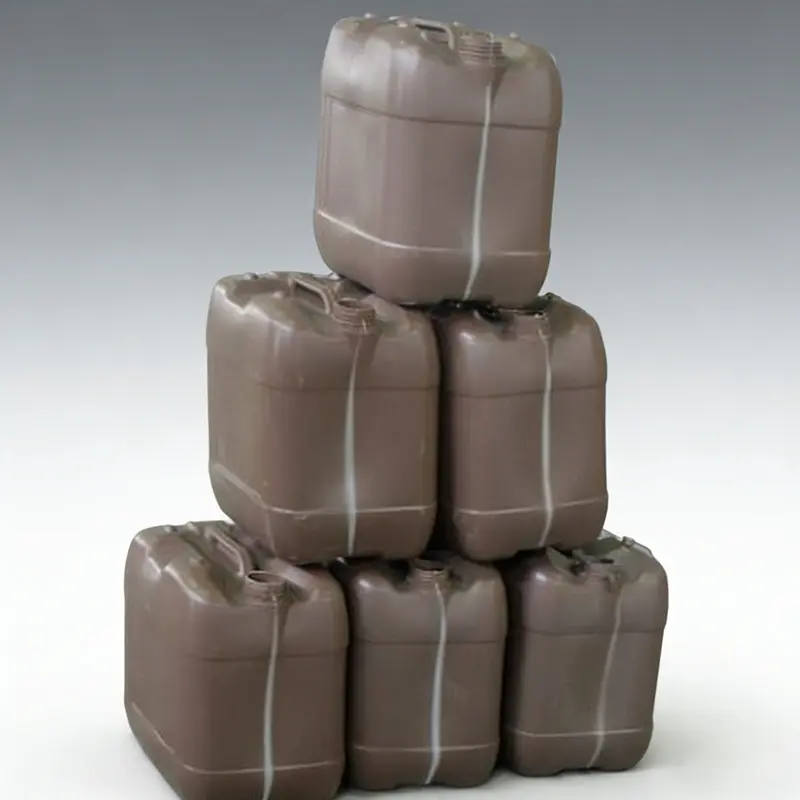

Our Extrusion Blow Moulding Machine has the advantages of compact structure and flexible operation. It can complete the whole production process from parison extrusion to product forming at a single station. This equipment is suitable for oil drum production and widely applied in the chemical industry.It supports mold quick change, is suitable for producing cosmetic bottles, food containers, industrial drums and other products, and can realize high-precision control of product wall thickness to meet customized production needs.
| Max. Product Volume | （L） | 20 |
| Theoretical Output | （PC/h） | 600 |
| Screw Diameter | （mm） | 80 |
| Screw L/D ratio | （L/D） | 25 |
| Screw drive power | （KW） | 37 |
| Screw heating capacity | （KW） | 16 |
| Output of HDPE | （kg/h） | 120 |
| Oil pump drive power | （KW） | 11-18.5 |
| Clamping force | （KN） | 200 |
| Platen size | （W×H）mm | 550×600 |
| Platen Opening Stroke | （mm） | 330-730 |
| Storage Capacity(Optional) | （L） | 4.8 |
| Max. Die Diameter | （mm） | 230 |
| Die heat capacity | （kw） | 6.5 |
| Average Energy Consumption | （kw/h） | 27.5 |
| Blowing pressure | （Mpa） | 0.6 |
| Air Consumption | （M³/MIN） | 0.8 |
| Cooling water pressure | （Mpa） | 0.3 |
| Water consumption | （L/MIN） | 85 |
| Size of machine | （L×W×H）/m | 4.3×2.2×3.1 |
| Weight of machine | （TON） | 10.5 |
